ACOUSTIC WOOD WOOL PANEL

Acusorb® Tessere Solu

Extremely durable, natural material made up of recycled wood fibres, cement and filtered water.

Suited to high impact areas due to its durability and industrial areas due to its A2 fire rating.

Description

Acusorb® Tessere Solu are the larger format panels of the acoustic wood wool Tessere range, they are available as plain untouched sheets, be cut to smaller sizes or can be CNC grooved to incorporate patterns onto the panel face. These Solu panels are extremely durable making them ideally suited where a high-impact visually attractive acoustic solution is required.

The Acusorb® Tessere Solu's advantages along with the Tessere Geo is there is a flexibility to utilise various colours and tile thicknesses creating 'step' or uneven features simply by combining the 15mm and 25mm boards together.

Again it's easy to be creative with the Tessere Solu. The most popular style is the chamfered edge rectangular panels, where designers and architects can play with colour positioning and brick formations. The borders for design are limitless. Alternate colours and heights, a feature wall or ceiling is created.

Boards can be CNC routed to adapt any groove formation and edge bevel detail you desire.

Our design team can help you through this process creating a real focal point with performance.

xSystem Options

Environment

Acusorb® Tessere manufactured by CEMBLOC (UK) are panels made using 100% natural materials. Combining wood (FSC certified), water and Portland cement. 60% cement, 30.48% wood and 9.52% water.

Fire Performance

A2 fire rated, one of reasons why panels are widely used in industrial premises, public buildings and educational institutions

Finishes

Readily available in it's natural form beige or white, black and grey. Any RAL colour is available upon request, dependent on quantity.

Acoustics

Solutions up to 'Class A' for ceilings and walls.

Downloads

a cusorb®tessere-tds.pdf

Case Studies

Available Upon Request

Styles Available

(Three thicknesses and any RAL.)

Support for Your Project

Have a technical advisor get in touch to discuss your needs and work out a suitable, effective solution for you. Arrange a site visit, get a quote or request a survey, our experts are here to help you find the best solution for your project. Call us today: +44 (0)1904 900 194 or send an email to support@acuphon.co.uk.

EMAIL NOW

Support for Your Project

CALL NOW

Acoustic Performance

Sound absorption coefficient αs	Height	125	250	500	1k	2k	4k	αw	NRC	Class*
25mm Solu Panel, With 50mm Mineral Wool, Without air gap	75mm	0.35	0.70	1.00	0.95	0.85	0.95	0.90	0.88	A
15mm Solu panel, with 50mm** mineral wool, without air gap	65mm	0.30	0.65	1.00	0.85	0.75	0.80	0.85	0.81	B
50mm Solu panel, without mineral wool, 200mm air gap	250mm	0.40	0.60	0.55	0.65	0.70	0.70	0.80	0.63	C

*Class, Building Regulations Absorber Classification, when tested to BS EN ISO 11654-1997

Features

Three Fibre Thicknesses.

Four Standard Colours.

Plus any grooves.

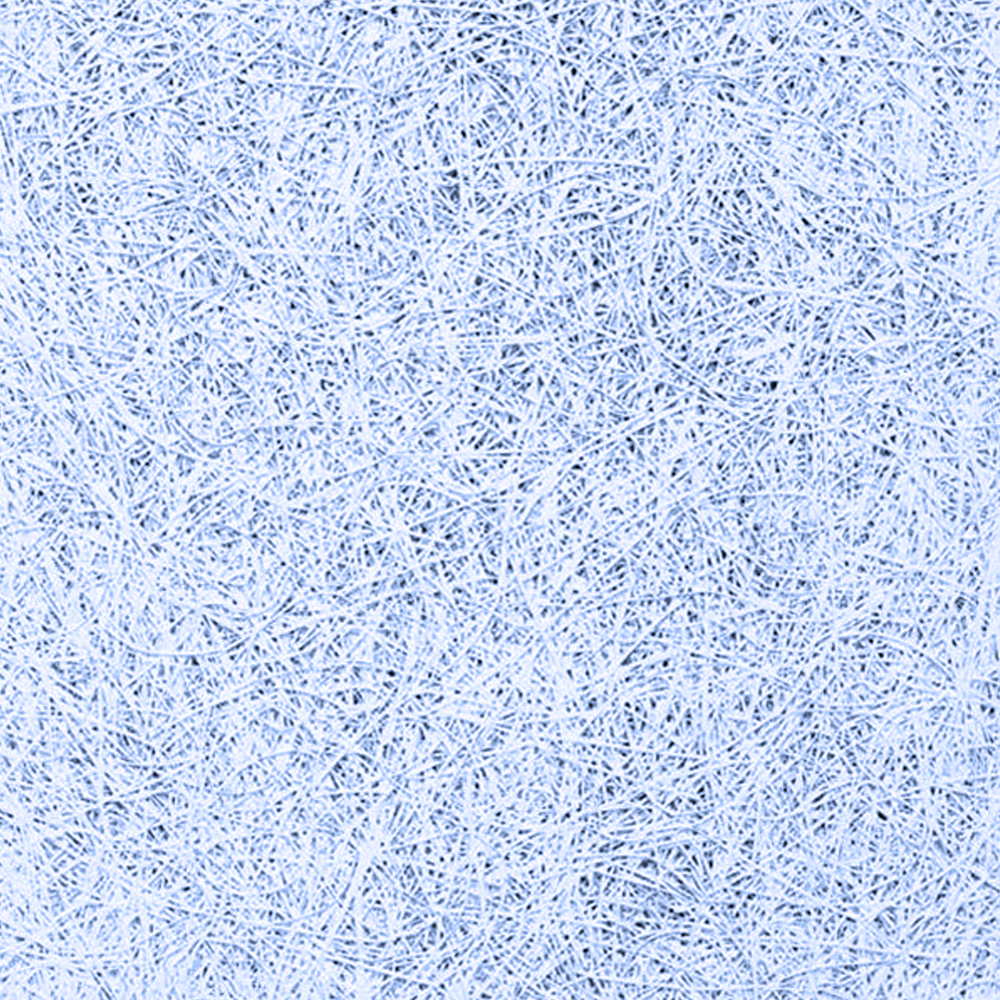

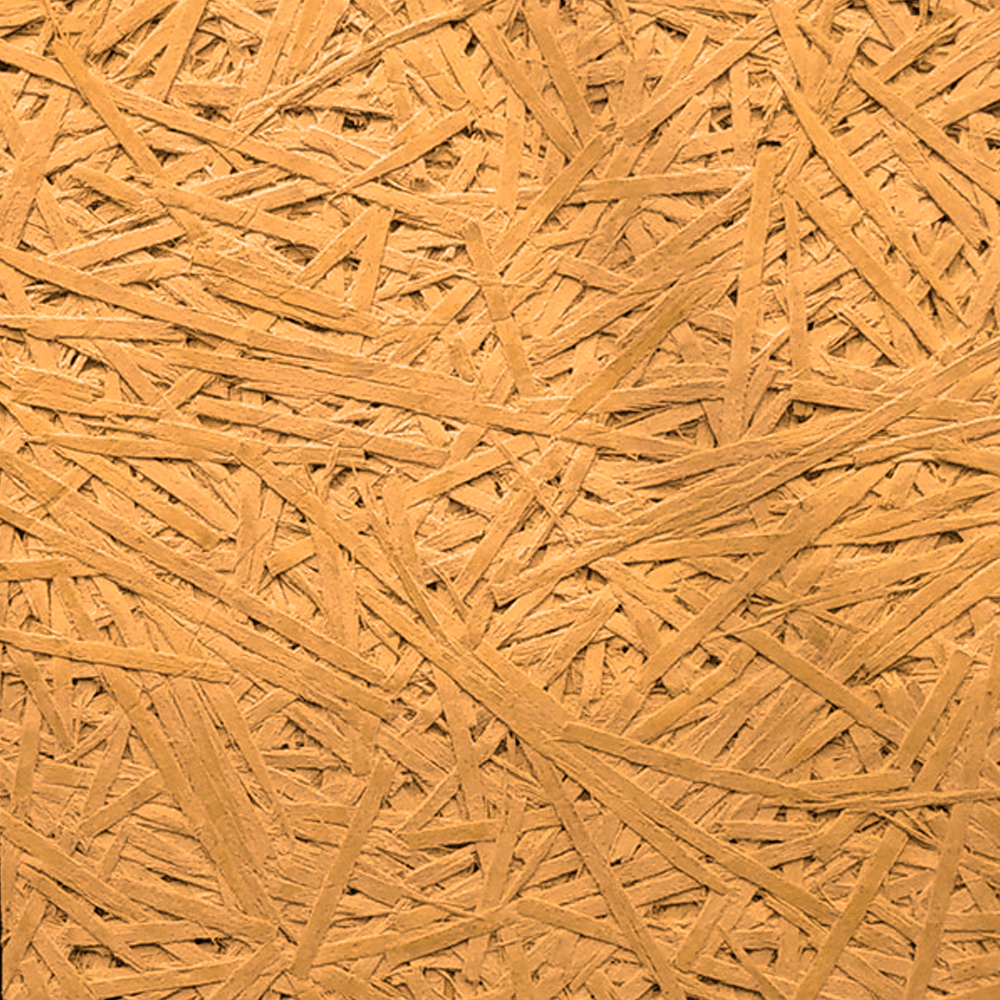

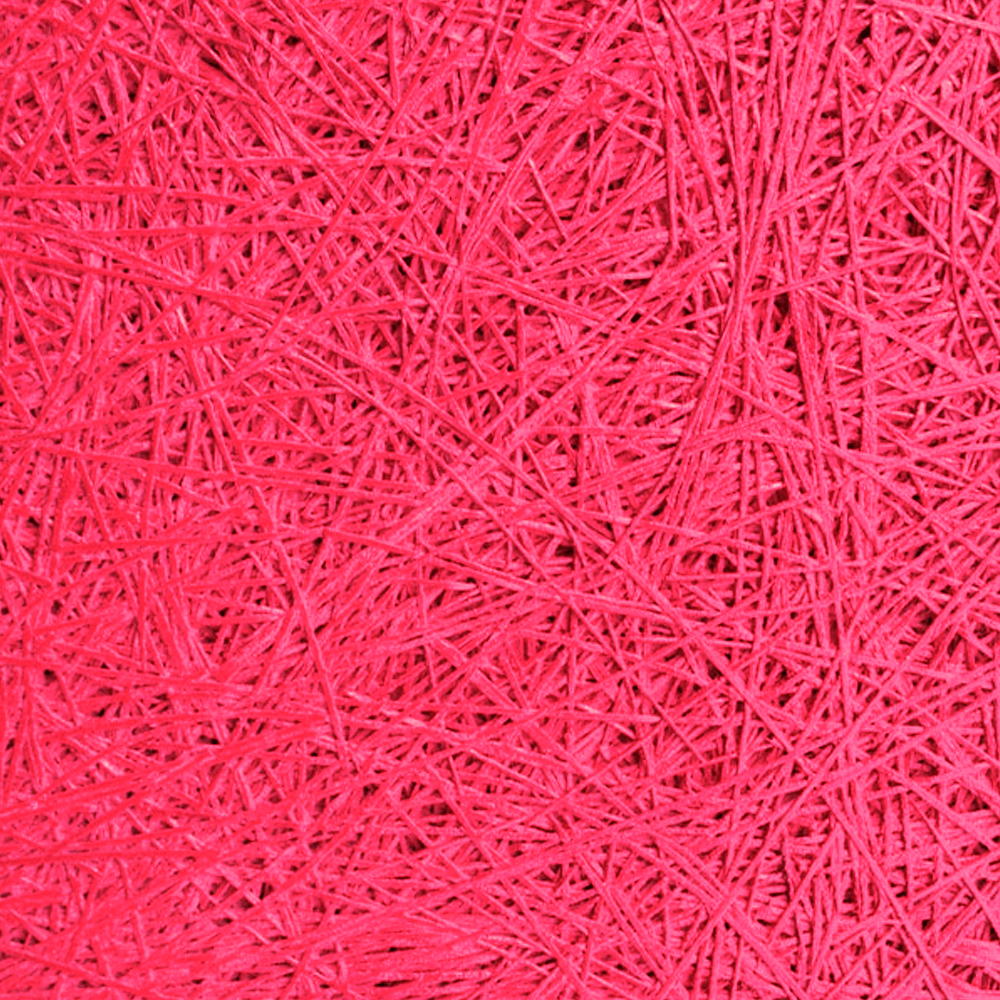

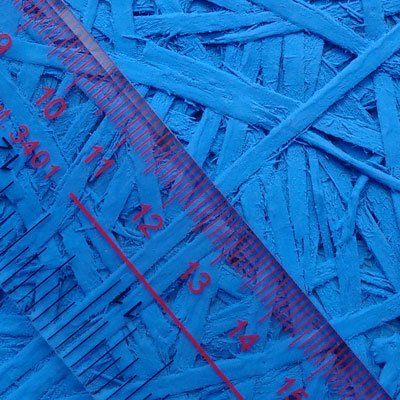

Acusorb® Tessere widths start at 0.5mm, followed by the most sought after thickness of 1mm, then 1.5mm and finally the thickest at 3mm for projects wanting to reach very special design solutions. Standard colours include it's natural form (beige), white, black and grey.

Boards can be CNC routed to adapt any groove formation and edge bevel detail you desire.

Followed by,

An Abundance Of Bespoke Colours.

Choose from 215* RAL finishes, whether you’re seeking a dark sapphire blue or a coral red. For even more bespoke colours we can mix a to order, and assign the colour to you. You simply need to sign of our sample patches.

FAQ

What are your business hours?

Q. When can I get in touch?

A. Our technical team are availabled between 8am - 5pm Mon - Fri (excluding Bank Holidays). It may be worth noting that our warehouse runs seven (7) days a week fulfilling orders.
Design / Specification

Q. Are you able to provide typical details and specification guidance for your systems?

A. Yes. Contact us and our technical team can look in to your requirements.

Q. How does the design process work on a live project?

A. First thing to note is that, we require all up-to-date drawings and final details of any services which may affect the system.

- Once recieved, we require site dimensions as all of our panels are made-to-measure but also as we produce our own drawings for sign off from the architect.

Q. Can we achieve Class A absorption?

A. Yes. Class A is very achievable for every project if dicussed at the early stage of the project. As a general rule of thumb, it requires roughly 35% or more of the area covered in our panels but needless to say please contact us for the specifics.
Sales/ Pricing

Q. How do I obtain a quotation?

A. When our products have been specified on the project, we would require the specification including ALL relevant drawings and assosicated bill of quants.

A. If you are after a project cost; Have any details been developed or are there are reference images which show the design?
- Is there a specific acoustic requirement?
- Have you got an preference on size and spacing?
- What would the quantity be?
- Are drawings available which show the area?

Q. What is the lead time?

A. Upon us recieving ALL relevant documents, so that we can produce our drawings. Typically you should plan for of 6-8 weeks after sign off.

Q. Do minimum order quantities apply?

A. We do pride ourselves on being able to commit to any project regardless of size, however projects over 50m2 become more cost effective.

Q. As a main contractor where do we buy your products?

A. You have two options,
Option 1. Directly from us, for you to install yourselves
Option 2. An approved installer, contact us for your projects local.
Installation

Q. Do you provide installation services?

A. We are able to offer install in our quotes. Installs will be undertaken by one of our approved installers, who have passed our installation training courses. The choosen installer will be selected based on overall score, based on location of your project, availability and price.
