SUSPENDED ACOUSTIC WOOD WOOL BAFFLE
Acusorb® Tessere Baffle
Extremely durable, natural material made up of recycled wood fibres, CEMBLOC cement and filtered water.
Is suited to high impact areas and industrial areas thanks to its A2 fire rating.
Description
Some spaces simply require optimisation of the acoustics, however do not permit full coverage of the ceiling. The reason for this is usually that the active building components of the ceiling need to be accessible, for example to allow for the building's air tightness or for architectural reasons that require that the original ceiling to remain visible where services become a feature. Acusorb® Tessere Baffles are ideal for these ceilings!
Acusorb® Tessere Baffle is a variant of the Tessere Solu. In a baffle format the Tessere baffle harnesses it's features and expresses the wood wool's true characteristics. Acusorb® Tessere Baffle can be hung freely as a traditional baffle or merged together to create feature points throughout the project design.
Is easy to be creative with the Tessere baffle. Grid or Fin modules can easily be achieved by cutting out grooves throughout the panels, which can in turn be interlinked or slotted together during the installation to create various shapes, 2D or 3D geometric can also be formed into squares, triangles, hexagons and pentagons, the borders for design are limitless.
Our design team can help you through this process creating a real focal point with performance.
Available Sizes:
1200 x 200 mm
1200 x 300 mm
1200 x 600 mm
2400 x 200 mm
2400 x 300 mm
2400 x 600 mm
System Options
Environment
Acusorb® Tessere manufactured by CEMBLOC (UK) are panels made using 100% natural materials. Combining wood (FSC certified), water and Portland cement. 60% cement, 30.48% wood and 9.52% water.
Fire Performance
A2 fire rated, one of reasons why panels are widely used in industrial premises, public buildings and educational institutions
Finishes
Readily available in it's natural form beige or white, black and grey. Any RAL colour is available upon request, dependent on quantity.
Acoustics
Solutions up to Class A for ceilings. Typical baffle in 'J' mounted (vertical) position always Class C.
Downloads
Case Studies
Available Upon Request
Styles Available
(Three thicknesses and any RAL).

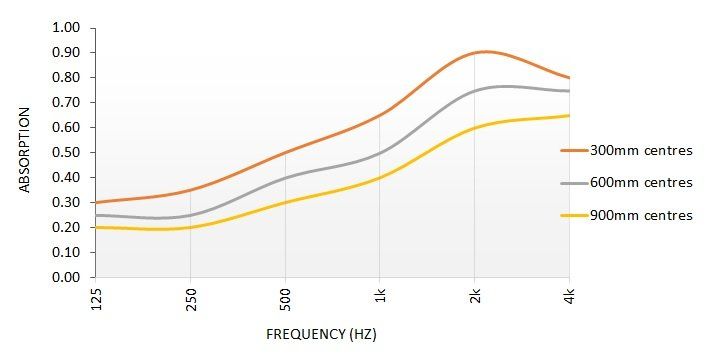

Acoustic Performance
| Sound absorption coefficient αs | Drop | 125 | 250 | 500 | 1k | 2k | 4k | αw | NRC | Class* |
|---|---|---|---|---|---|---|---|---|---|---|
| 300mm Centres | 200mm | 0.30 | 0.35 | 0.50 | 0.65 | 0.90 | 0.80 | 0.55 | 0.60 | C |
| 600mm Centres | 200mm | 0.25 | 0.25 | 0.40 | 0.50 | 0.75 | 0.75 | 0.45 | 0.48 | C |
| 900mm Centres | 200mm | 0.20 | 0.20 | 0.30 | 0.40 | 0.60 | 0.65 | 0.40 | 0.38 | C |
*Class, Building Regulations Absorber Classification, when tested to BS EN ISO 11654-1997
Features
Three Fibre Thicknesses.
Four Standard Colours.
Plus any grooves.
Acusorb® Tessere widths start at 0.5mm, followed by the most sought after thickness of 1mm, then 1.5mm and finally the thickest at 3mm for projects wanting to reach very special design solutions. Standard colours include it's natural form (beige), white, black and grey.
Boards can then be CNC routed to adapt any grooves you desire.
Followed by,
An Abundance Of Bespoke Colours.
Choose from 215* RAL finishes, whether you’re seeking a dark sapphire blue or a coral red. For even more bespoke colours we can mix a to order, and assign the colour to you. You simply need to sign of our sample patches.
