SLOTTED ACOUSTIC TIMBER PANEL
Acusorb® Medera Slot
Acusorb® Medera Slot timber acoustic wall and ceiling panel system.
FT. CNC machined linear slots for maximum absorption.
Description
Acusorb® Medera Slot acoustic panels are visually stunning wooden slotted acoustic panels made up of a series of slots either R16 and R32 which depicts the slot centres, 16mm and 32mm, the slot width being 5mm . Each panel has a CNC machined groove joint for either a seamless or shadow gap joint when installing.
The surface comes in three finishing types, painted MDF, melamine, and timber veneer. The base material can be made of either MDF, fire-resistant MDF, eco-friendly MDF.
Acusorb® Medera Slot acoustic panels are designed for their looks whilst reducing noise levels projected by general day to day occurrences minimising sounds reverberation or echo within any space. Acusorb® Medera Slot design minimises noise breakout to adjoining rooms and creates a soft and peaceful tranquillity with the room. This type of acoustic timber panel system is uniquely assembled allowing them to absorb and centralise sound waves. By simply adding a sound absorbing material behind these slats, a 'Class A' absorption classification can be achieved.
Acusorb® Medera Slot acoustic panels are uniquely designed and can either be attached to walls or ceiling creating a striking visual with acoustic performance.
Suited to public buildings, in areas such as, communal spaces, reception areas, conference rooms, atria, auditoria and breakout spaces. Acusorb® Medera Perorated can be used in offices, restaurants, schools, universities and other areas where high traffic is normal and where a visually striking acoustic performance is required. There is a wide range of options when it comes to surface finishes offering many possibilities that will offer variation to the look and feel of the finished space.
With all our systems we offer a combined uniquely designed solution with straightforward, flexible installation methods. We advise Acusorb® Medera Flex for when the project design requires a flexible and curved feature.
Our professional team are here to help you with any questions.
System Options
Environment
FSC or otherwise sustainably sourced materials available.
Fire Performance
When specified Class 0 (Euro Class B) components and finishing are used.
Finishes
Solid timber provides the most authentic result but can limit some design possibilities.
Veneers enable further options and potential cost savings.
Acoustics
Solutions up to Class A for ceilings and walls.
Downloads
Acusorb Medera TDS.pdf
Acusorb Medera Facings.pdf
Case Studies
Available Upon Request

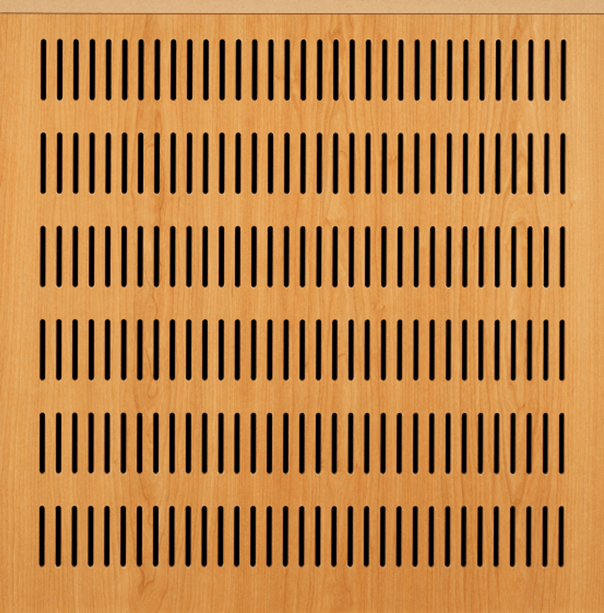

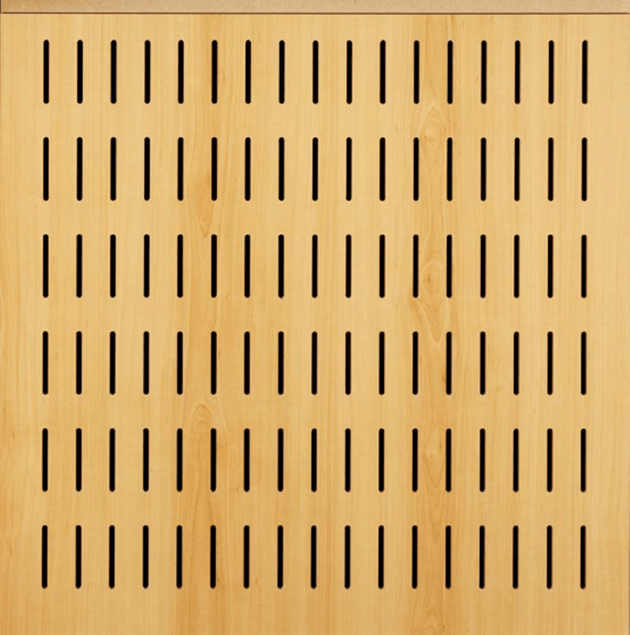

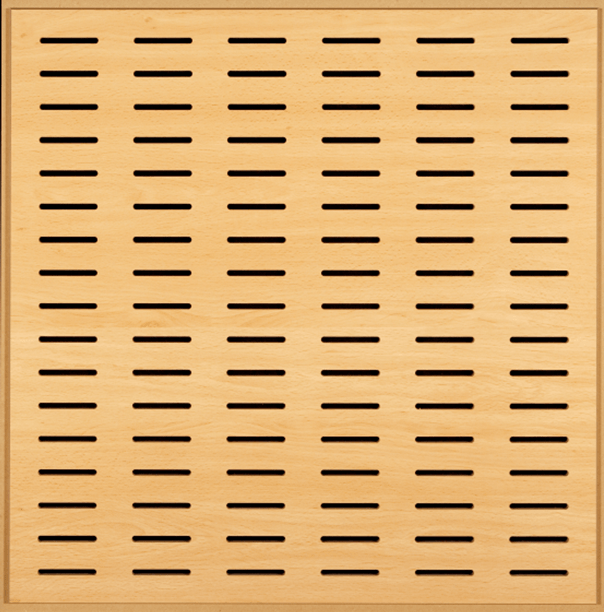

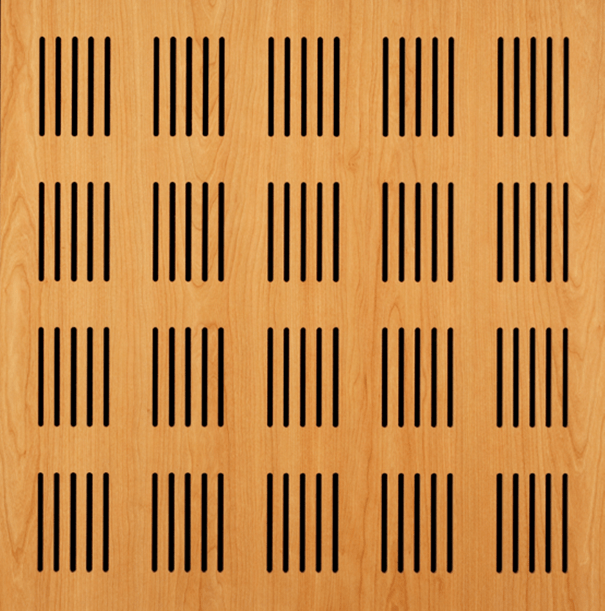

Styles Available
Non standard styles may be available upon request.
Acoustic Performance
| Sound absorption coefficient αs | Thickness | 125 | 250 | 500 | 1k | 2k | 4k | αw | NRC | Class* |
|---|---|---|---|---|---|---|---|---|---|---|
| Wall: 45mm insulation + 30mm air void. | 87mm | 0.35 | 0.75 | 1 | 0.9 | 0.8 | 0.7 | 0.85 | 0.86 | B |
| Ceiling: 45mm insulation + 200mm air void. | - | 0.50 | 0.80 | 0.90 | 0.85 | 0.85 | 0.75 | 0.85 | 0.90 | B |
*Class, Building Regulations Absorber Classification, when tested to BS EN ISO 11654-1997
Features
Enhanced Wooden Acoustics.
Slotted Variations.
Transform Your Space.
Visually appealing wooden acoustic panels with CNC routed slots. These slotted wooden acoustic panels for walls and ceilings are carefully designed to effortlessly transform any space, enhancing their surroundings both visually and acoustically.
