HANGING ACOUSTIC FABRIC BAFFLE

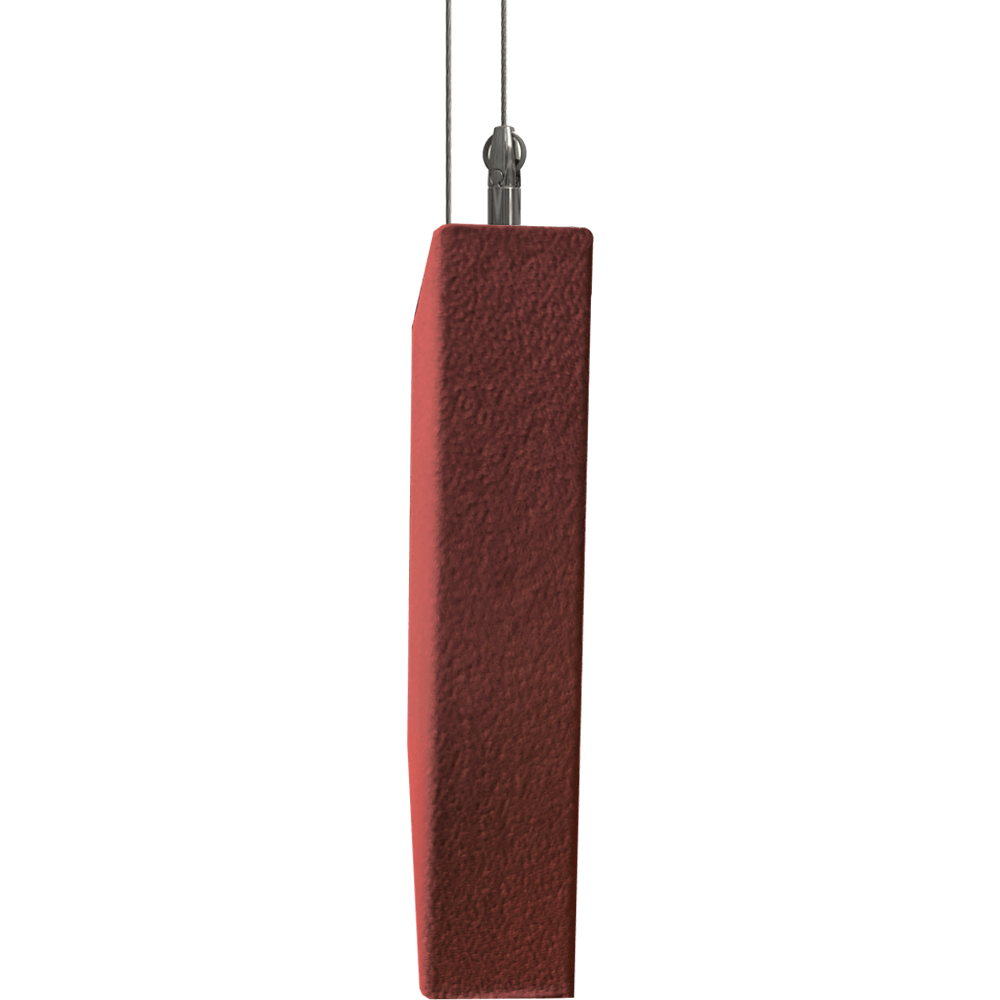

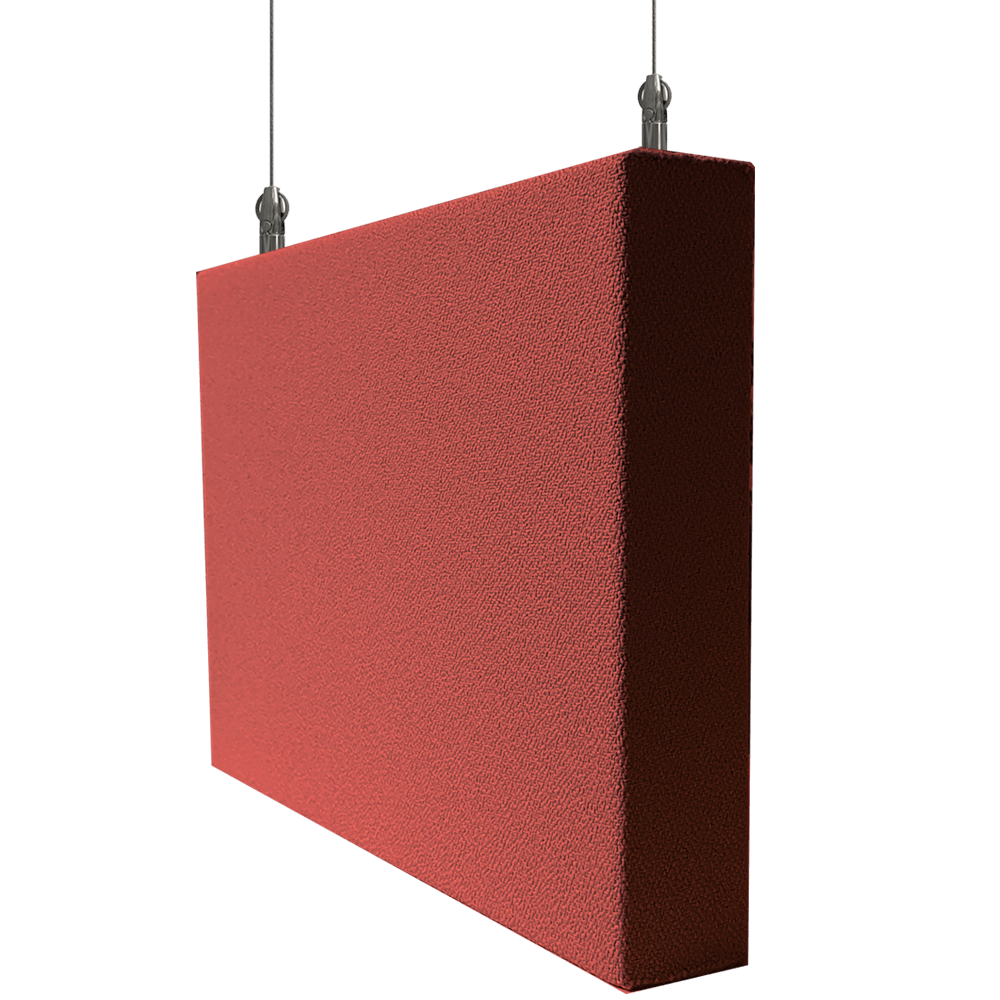

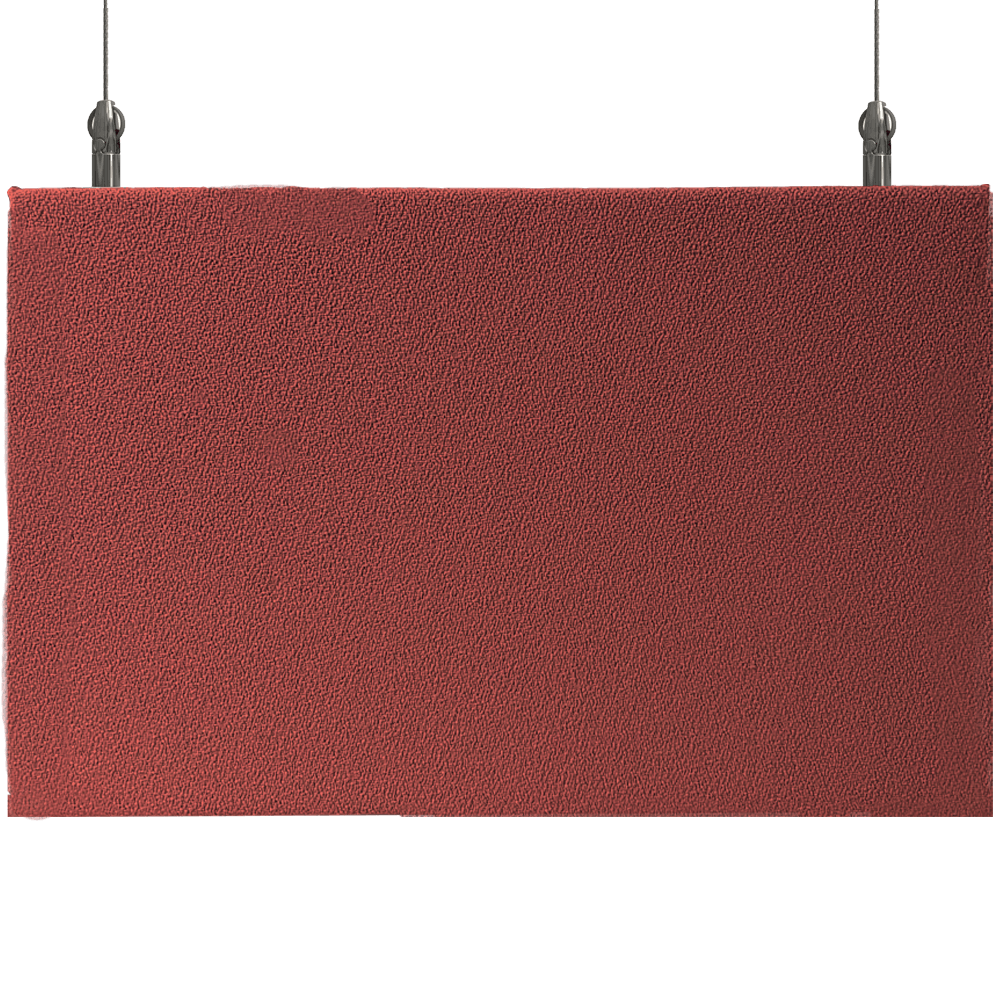

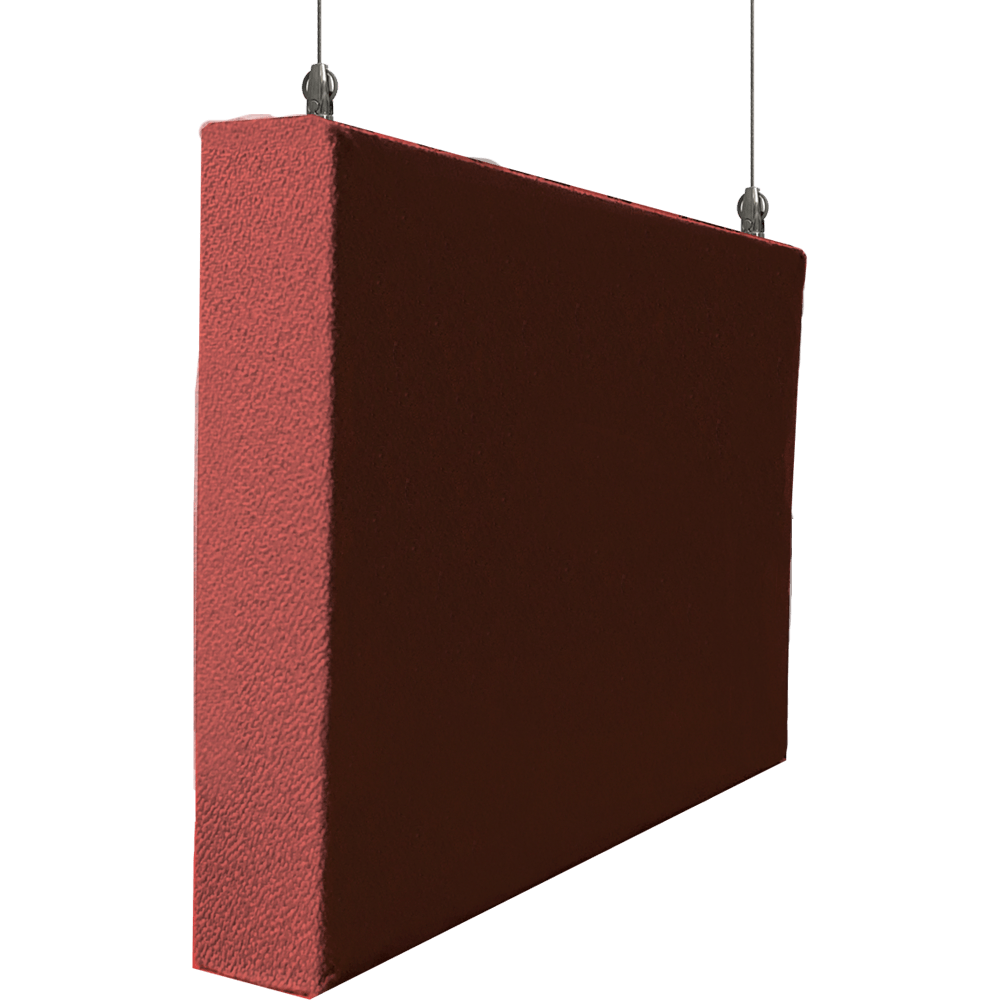

Acusorb® Tessuto Baffle

Acusorb® Tessuto Baffle. Dampened spatial acoustics and a twist of character.

Available In Various Fabrics Including, Lucia, Blazer and Cara.

Specialist fabric options available upon request.

Description

AcuSorb® Tessuto Baffles are a high quality sound absorbing panel system. These panels are designed solely as ceiling treatment to control ‘Echo’ or reverberant noise in areas with hard surfaces. The AcuSorb® Tessuto Baffle improves the quality of any workplace environment due to the panels ability to absorb echo otherwise known as reverberation. Each panel is fully upholstered using an acoustically transparent fabric and available in many different fabric textures and colours.

Our sound absorbing acoustic baffles are easy to install and are suspended using fully adjustable drop wire kits. This panel type is extensively used in, reception areas, offices, atria, large recording studios, restaurants, bars and cafes, coffee houses, libraries, universities, schools and conference spaces.

These fabric upholstered, noise absorbing baffles offer both a great silencing effect and enhanced quality of sound suited to speech intelligibility when suspended in rows and staggered. AcuSorb® Tessuto Baffles reduce reverberation levels in any space, which in turn reduces the ambient noise, significantly improving the clarity of sound.

AcuSorb® Tessuto sound absorbing suspended baffles, also know as suspended absorbers, are flexible in terms of colour, texture, shape or size, they can be totally bespoke and designed to fit your needs or available in standard traditional sizes. At acuphon we offer a large range of acoustically transparent fabrics giving both a choice in colour and choice in texture. Blend in or a total contrast, you decide.

System Options

Environment

High content of recyclable material

Fire Performance

Dependant on fabric choice, fire performance is rated between Class 1 and Class 0.

Finishes

Fabrics available from Camira: Lucia, Blazer and Cara. Specialist fabric options available upon request.

Acoustics

Solutions up to Class A for ceilings. Typical baffle in 'J' mounted (vertical) position always Class C.

Downloads

AcuSorb® Tessuto Data Sheet

Case Studies

Available Upon Request

Styles Available

(Non standard styles may be available upon request)

Support for Your Project

Have a technical advisor get in touch to discuss your needs and work out a suitable, effective solution for you. Arrange a site visit, get a quote or request a survey, our experts are here to help you find the best solution for your project. Call us today: +44 (0)1904 900 194 or send an email to support@acuphon.co.uk.

EMAIL NOW

Support for Your Project

CALL NOW

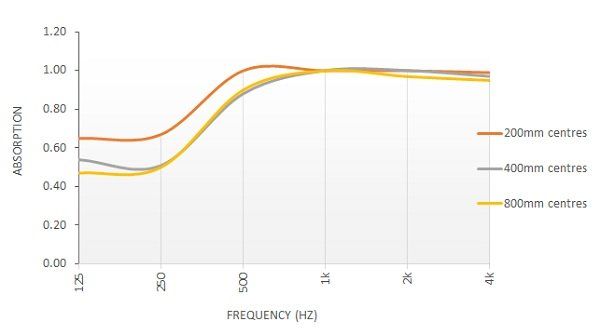

Acoustic Performance

Sound absorption coefficient αs	Distance	125	250	500	1k	2k	4k	NRC	Class*
200mm centres	200	0.65	0.67	1.00	1.00	1.00	0.99	0.92	C
400mm centres	400	0.48	0.51	0.88	1.00	1.00	0.97	0.85	C
600mm centres	800	0.47	0.50	0.90	1.00	0.97	0.95	0.84	C

*Class, Building Regulations Absorber Classification, when tested to BS EN ISO 11654-1997

Features

One Panel.

Several Applications.

Optional: Impact Resistant Layer.

The impact layer is a very low profile reinforced mesh and is bonded to the panel prior to the being fabric wrapped. This high impact layer is particularly suited to areas where there is a likelihood of high footfall, such as sporting facilities and classrooms.

Fabric Swatch Cards

Camira

InLoom

FAQ

What are your business hours?

Q. When can I get in touch?

A. Our technical team are availabled between 8am - 5pm Mon - Fri (excluding Bank Holidays). It may be worth noting that our warehouse runs seven (7) days a week fulfilling orders.
Design / Specification

Q. Are you able to provide typical details and specification guidance for your systems?

A. Yes. Contact us and our technical team can look in to your requirements.

Q. How does the design process work on a live project?

A. First thing to note is that, we require all up-to-date drawings and final details of any services which may affect the system.

- Once recieved, we require site dimensions as all of our panels are made-to-measure but also as we produce our own drawings for sign off from the architect.

Q. Can we achieve Class A absorption?

A. Yes. Class A is very achievable for every project if dicussed at the early stage of the project. As a general rule of thumb, it requires roughly 35% or more of the area covered in our panels but needless to say please contact us for the specifics.
Sales/ Pricing

Q. How do I obtain a quotation?

A. When our products have been specified on the project, we would require the specification including ALL relevant drawings and assosicated bill of quants.

A. If you are after a project cost; Have any details been developed or are there are reference images which show the design?
- Is there a specific acoustic requirement?
- Have you got an preference on size and spacing?
- What would the quantity be?
- Are drawings available which show the area?

Q. What is the lead time?

A. Upon us recieving ALL relevant documents, so that we can produce our drawings. Typically you should plan for of 6-8 weeks after sign off.

Q. Do minimum order quantities apply?

A. We do pride ourselves on being able to commit to any project regardless of size, however projects over 50m2 become more cost effective.

Q. As a main contractor where do we buy your products?

A. You have two options,
Option 1. Directly from us, for you to install yourselves
Option 2. An approved installer, contact us for your projects local.
Installation

Q. Do you provide installation services?

A. We are able to offer install in our quotes. Installs will be undertaken by one of our approved installers, who have passed our installation training courses. The choosen installer will be selected based on overall score, based on location of your project, availability and price.
