3D ACOUSTIC FABRIC PANEL

Acusorb® Tessuto 3D

3D acoustic fabric tiles offering outstanding sound absorption with a visual impact.

Available In Various Fabrics: Lucia, Blazer, Cara and Bondai.

Specialist fabric options available upon request.

Description

Aesthetics as well acoustics, the Acusorb® Tessuto 3D is a textured acoustic panel, upholstered in fabric. Whilst achieving a Class A sound absorption coefficient the 3D acoustic wall panels create one of the best features in any space. A wonderful textural design, with speech intelligibility enhancement for social interactions. Acusorb® Tessuto 3D textured panels are a beautiful feature and acoustic solution for a wide range of room types including restaurants, reception areas, offices, conference rooms and public spaces.

Our Tessuto 3D acoustic panel design creates a step effect where a collection of thickness variations can be used to create a modular design which may be added to or adjusted at any point. Each panel design will incorporate a fleece backing for ease of handling and to boost the overall aesthetic.

These fabric upholstered wall panels provide noise or sound mitigation offering both greater silencing effects and enhanced quality of sound suited to speech intelligibility. AcuSorb® Tessuto 3D acoustic wall panels reduce reverberation levels in any space, which in turn reduces the ambient noise, significantly improving the clarity of sound.

AcuSorb® Tessuto 3D sound absorbing acoustic wall panels are flexible in terms of colour, texture, shape or size, they can be totally bespoke and designed to fit your needs or available in standard traditional sizes. At acuphon we offer a large range of acoustically transparent fabrics giving both a choice in colour and choice in texture. Blend in or a total contrast, you decide.

System Options

Environment

High content of recyclable material

Fire Performance

Dependant on fabric choice, fire performance is rated between Class 1 and Class 0.

Finishes

Standard available fabric: Lucia, Blazer, Cara and Bondai. Designer fabric options available upon request.

Acoustics

Solutions up to Class A for ceilings and walls.

Downloads

Fabric Acoustic Panels Overview

Case Studies

Available Upon Request

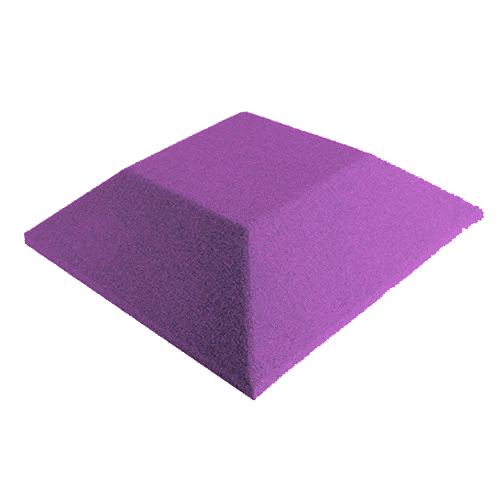

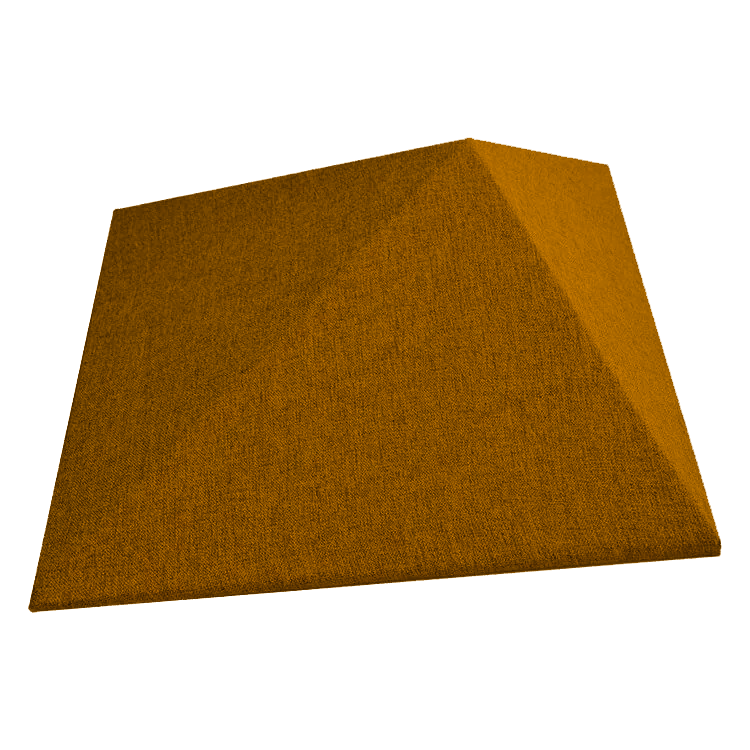

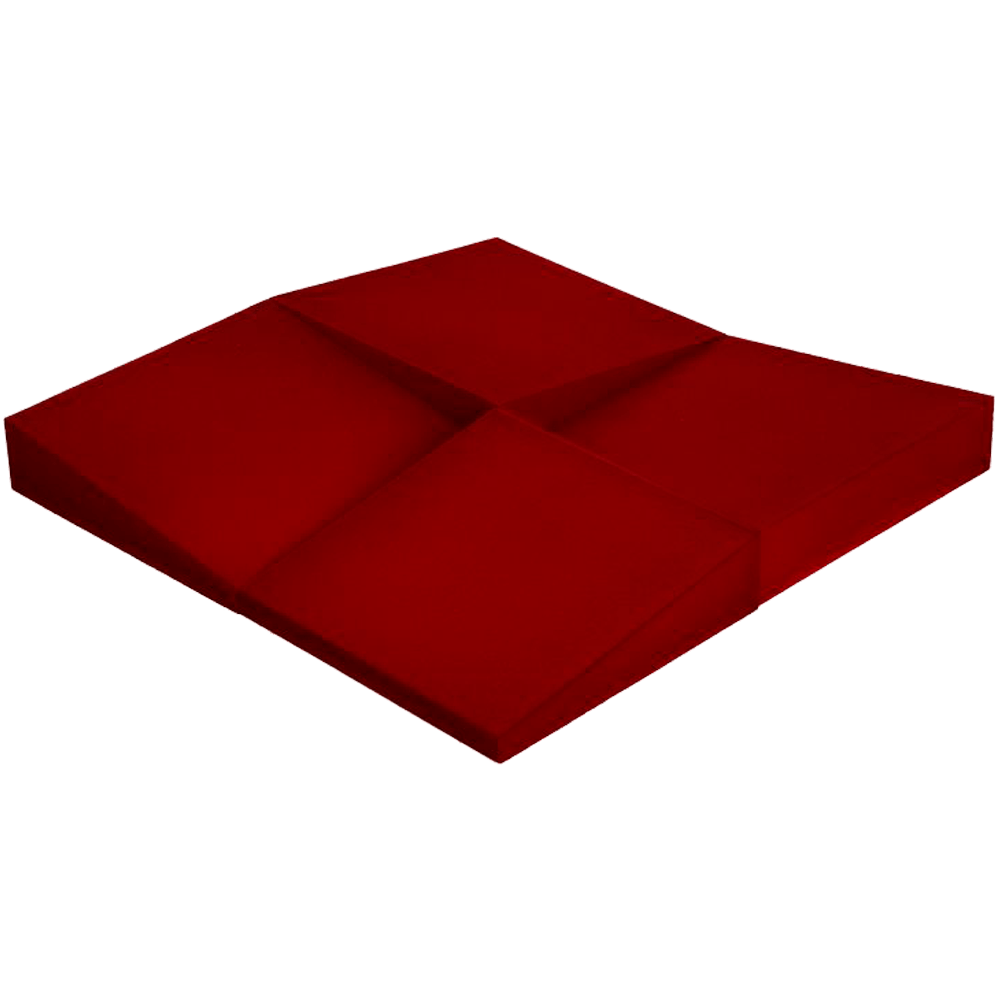

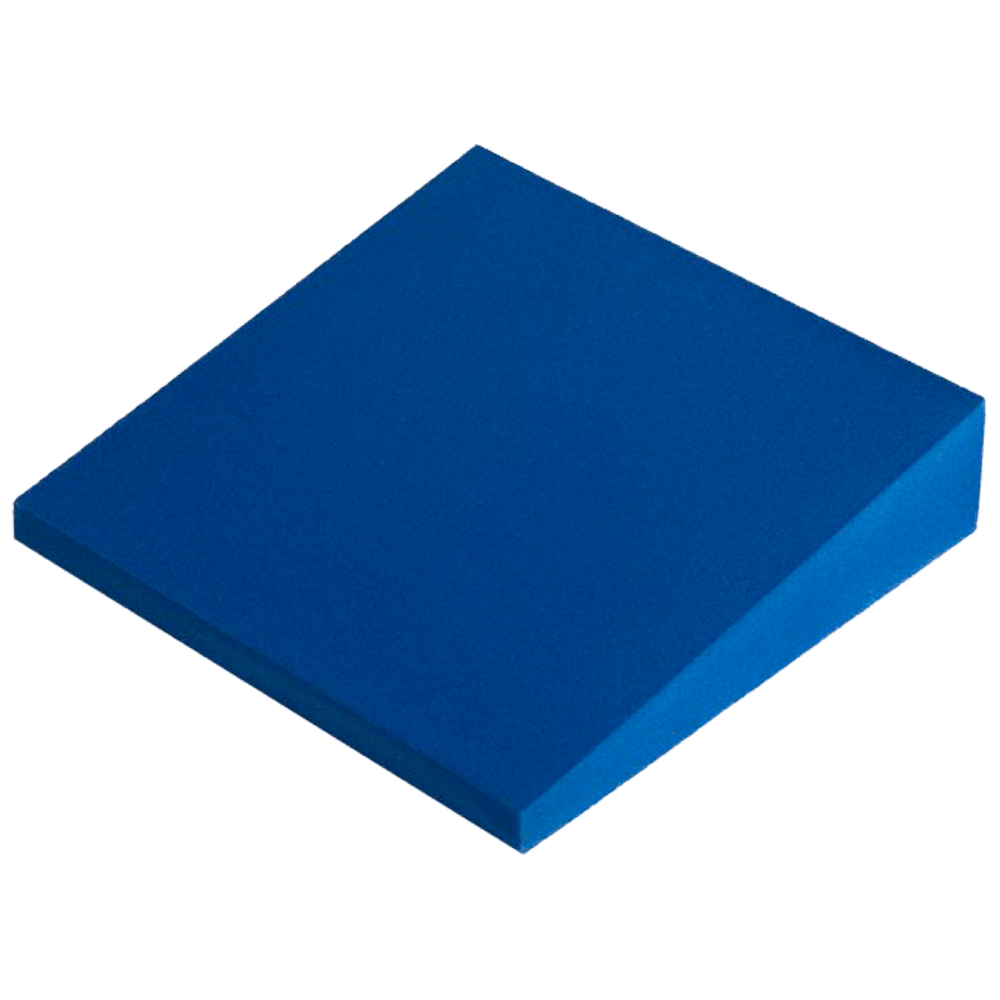

Styles Available

(Non standard styles may be available upon request)

Support for Your Project

Have a technical advisor get in touch to discuss your needs and work out a suitable, effective solution for you. Arrange a site visit, get a quote or request a survey, our experts are here to help you find the best solution for your project. Call us today: +44 (0)1904 900 194 or send an email to support@acuphon.co.uk.

EMAIL NOW

Support for Your Project

CALL NOW

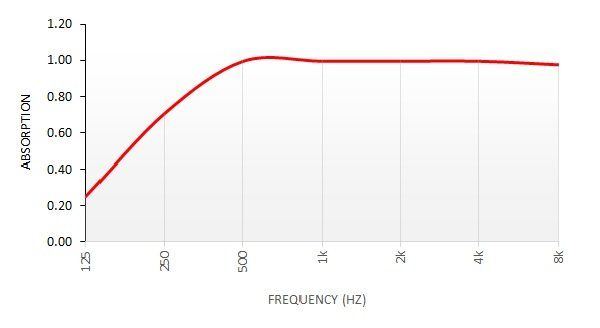

Acoustic Performance

Sound absorption coefficient αs	Thickness	125	250	500	1k	2k	4k	8k	αw	NRC	Class
Direct To Wall	40mm	0.25	0.71	1.00	1.00	1.00	1.00	0.98	1.00	1.00	A

*Class, Building Regulations Absorber Classification, when tested to BS EN ISO 11654-1997

Features

One Panel.

Several Applications.

Optional: Impact Resistant Layer.

The impact layer is a very low profile reinforced mesh and is bonded to the panel prior to the being fabric wrapped. This high impact layer is particularly suited to areas where there is a likelihood of high footfall, such as sporting facilities and classrooms.

Fabric Swatch Cards

Camira

InLoom

FAQ

What are your business hours?

Q. When can I get in touch?

A. Our technical team are availabled between 8am - 5pm Mon - Fri (excluding Bank Holidays). It may be worth noting that our warehouse runs seven (7) days a week fulfilling orders.
Design / Specification

Q. Are you able to provide typical details and specification guidance for your systems?

A. Yes. Contact us and our technical team can look in to your requirements.

Q. How does the design process work on a live project?

A. First thing to note is that, we require all up-to-date drawings and final details of any services which may affect the system.

- Once recieved, we require site dimensions as all of our panels are made-to-measure but also as we produce our own drawings for sign off from the architect.

Q. Can we achieve Class A absorption?

A. Yes. Class A is very achievable for every project if dicussed at the early stage of the project. As a general rule of thumb, it requires roughly 35% or more of the area covered in our panels but needless to say please contact us for the specifics.
Sales/ Pricing

Q. How do I obtain a quotation?

A. When our products have been specified on the project, we would require the specification including ALL relevant drawings and assosicated bill of quants.

A. If you are after a project cost; Have any details been developed or are there are reference images which show the design?
- Is there a specific acoustic requirement?
- Have you got an preference on size and spacing?
- What would the quantity be?
- Are drawings available which show the area?

Q. What is the lead time?

A. Upon us recieving ALL relevant documents, so that we can produce our drawings. Typically you should plan for of 6-8 weeks after sign off.

Q. Do minimum order quantities apply?

A. We do pride ourselves on being able to commit to any project regardless of size, however projects over 50m2 become more cost effective.

Q. As a main contractor where do we buy your products?

A. You have two options,
Option 1. Directly from us, for you to install yourselves
Option 2. An approved installer, contact us for your projects local.
Installation

Q. Do you provide installation services?

A. We are able to offer install in our quotes. Installs will be undertaken by one of our approved installers, who have passed our installation training courses. The choosen installer will be selected based on overall score, based on location of your project, availability and price.
